Category: Hydraulic Hose Pipe

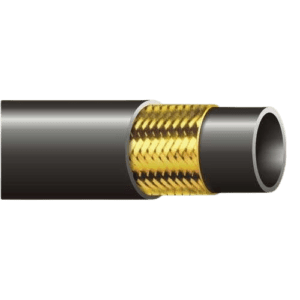

SAE100-4SP
Product Description
Very high pressure hydraulic lines 170 to 500 bar and hydrostatic transmission lines
For use with petroleum, synthetic or water based fluids in hydraulic systems
suitable for earthmoving & material handling equipments and machineries / systems
 |
 |
 |
 |
 |
||||||
|---|---|---|---|---|---|---|---|---|---|---|
| DN | HOSE I. D. (NOM.) | HOSE O. D. (NOM.) | WORKING PRESSURE | MIN. BURST PRESSURE | MIN. BEND RADIUS | |||||
| (IN.) | (MM) | (IN.) | (MM) | (PSI) | (BAR) | (PSI) | (BAR) | (MM) | (IN.) | |
| 6 | 1/4 | 6.4 | 0.70 | 17.7 | 7,250 | 500 | 29,000 | 2,000 | 150 | 6.00 |
| 10 | 3/8 | 9.5 | 0.84 | 21.4 | 6,453 | 445 | 26,000 | 1,800 | 175 | 7.00 |
| 12 | 1/2 | 12.7 | 0.97 | 24.6 | 6,018 | 415 | 24,400 | 1,680 | 225 | 9.00 |
| 16 | 5/8 | 16.0 | 1.12 | 28.5 | 5,800 | 400 | 22,000 | 1,520 | 250 | 10.00 |
| 19 | 3/4 | 19.0 | 1.26 | 32.1 | 5,510 | 380 | 20,400 | 1,400 | 300 | 12.00 |
| 25 | 1 | 15.4 | 1.56 | 39.7 | 4,640 | 320 | 17,400 | 1,200 | 340 | 13.60 |
| 32 | 1.1/4 | 31.8 | 2.00 | 50.8 | 3,045 | 210 | 12,000 | 840 | 460 | 18.40 |
| 38 | 1.1/2 | 38.1 | 2.25 | 57.1 | 2,683 | 185 | 10,800 | 740 | 560 | 22.40 |
| 50 | 2 | 50.9 | 2.78 | 70.5 | 2,538 | 175 | 9,840 | 680 | 680 | 26.40 |
