Category: Hydraulic Hose Pipe

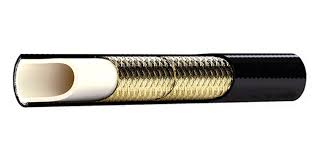

SAE100-R8
Product Description
High Pressure hydraulic lines 140 to 350 bar
Compact, high pressure, light weight and low change in length
Suitable for hydraulic application with increased resistance to abrasion
For use with petroleum, synthetic or water based fluids in hydraulic systems
suitable for agricultural machinery, earthmoving, safety, rescue and material handling equipment can be used for industrial gases and other application, please consult manufacturer
 |
 |
 |
 |
 |
||||||
|---|---|---|---|---|---|---|---|---|---|---|
| DN | HOSE I. D. (NOM.) | HOSE O. D. (NOM.) | WORKING PRESSURE | MIN. BURST PRESSURE | MIN. BEND RADIUS | |||||
| (IN.) | (MM) | (IN.) | (MM) | (PSI) | (BAR) | (PSI) | (BAR) | (MM) | (IN.) | |
| 5 | 3/16 | 4.8 | 0.490 | 12.4 | 5,000 | 350 | 20,000 | 1,400 | 40 | 1.6 |
| 6 | 1/4 | 6.4 | 0.635 | 16.1 | 5,000 | 350 | 20,000 | 1,400 | 45 | 1.8 |
| 8 | 5/16 | 8.0 | 0.660 | 16.7 | 4,250 | 290 | 17,000 | 1,160 | 55 | 2.2 |
| 10 | 3/8 | 9.6 | 0.730 | 18.5 | 4,000 | 280 | 16,000 | 1,120 | 65 | 1.6 |
| 12 | 1/2 | 12.8 | 0.890 | 22.6 | 3,500 | 245 | 14,000 | 980 | 77 | 3.1 |
| 16 | 5/8 | 16.1 | 1,010 | 25.6 | 2,750 | 190 | 11,000 | 760 | 100 | 4.0 |
| 20 | 3/4 | 19.2 | 1,140 | 28.9 | 2,250 | 155 | 9,000 | 620 | 140 | 5.6 |
| 25 | 1 | 25.5 | 1,420 | 36.1 | 2,000 | 140 | 8,000 | 560 | 200 | 8.00 |
