Category: Hydraulic Hose Pipe

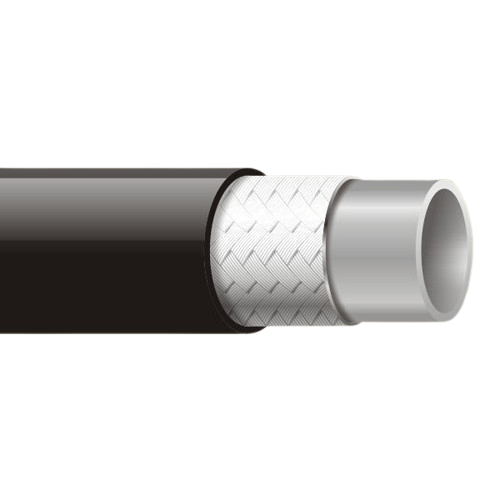

SAE100-R7
Product Description
Medium Pressure hydraulic lines 70 to 210 bar
Suitable for hydraulic application with increased resistance to abrasion
For use with petroleum, synthetic or water based fluids in hydraulic systems
Suitable for agricultural machinery, earthmoving, articulating & telescopic boom and material handing equipments
Can be used for industrial gases and other applications, please consult manufacturer
 |
 |
 |
 |
 |
||||||
|---|---|---|---|---|---|---|---|---|---|---|
| DN | HOSE I. D. (NOM.) | HOSE O. D. (NOM.) | WORKING PRESSURE | MIN. BURST PRESSURE | MIN. BEND RADIUS | |||||
| (IN.) | (MM) | (IN.) | (MM) | (PSI) | (BAR) | (PSI) | (BAR) | (MM) | (IN.) | |
| 3 | 1/8 | 3.2 | 0.320 | 8.1 | 3,000 | 210 | 12,000 | 840 | 25 | 1.0 |
| 5 | 3/16 | 4.8 | 0.405 | 10.3 | 3,000 | 210 | 12,000 | 840 | 25 | 1.0 |
| 6 | 1/4 | 6.4 | 0.490 | 12.4 | 2,750 | 190 | 11,000 | 760 | 32 | 1.3 |
| 8 | 5/16 | 8.0 | 0.560 | 14.2 | 2,500 | 175 | 10,000 | 700 | 45 | 1.8 |
| 10 | 3/8 | 9.6 | 0.620 | 15.7 | 2,250 | 155 | 9,000 | 620 | 55 | 2.2 |
| 12 | 1/2 | 12.8 | 0.760 | 19.3 | 2,050 | 140 | 8,200 | 560 | 77 | 3.1 |
| 16 | 5/8 | 16.1 | 0.910 | 23.1 | 1,500 | 105 | 6,000 | 420 | 110 | 4.4 |
| 20 | 3/4 | 19.2 | 1,040 | 26.4 | 1,300 | 90 | 5,200 | 360 | 140 | 5.6 |
| 25 | 1 | 25.5 | 1.310 | 33.3 | 1,000 | 70 | 4,000 | 280 | 200 | 8.0 |
| 32 | 1.1/4 | 32.0 | 1,654 | 42.0 | 1,000 | 70 | 4,000 | 280 | 300 | 12.0 |
