Category: Pneumatic Air Driven Liquid Pump

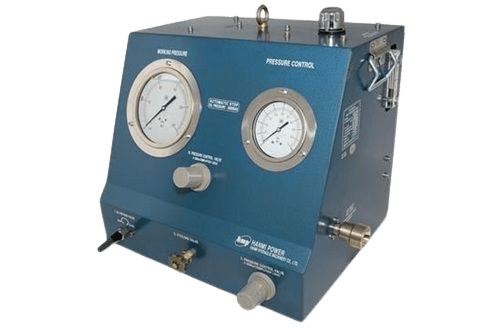

HANMI 2500-1 Air Driven Liquid Pump
Product Description
Double-stage pump hydraulic Power-Supply.
The unit is Powered by air, and delivers a maximum hydraulicpressure of 2350bar.
Analogue gauge, readings class 1.0.
Max. Flow (LOW PRESSURE PUMP) 1.45 I/min with app. 7.6ccdisplacement per cycle and 190 cycles min.
Max. Flow (HIGH PRESSURE PUMP) 0.5 I/min with app.2.51ccdisplacement per cycle and 199 cycles per min.
Tank capacity app. 14liter.
Safety release valve is adjusted to max 2000bar
The unit is Powered by air, and delivers a maximum hydraulicpressure of 2350bar.
Analogue gauge, readings class 1.0.
Max. Flow (LOW PRESSURE PUMP) 1.45 I/min with app. 7.6ccdisplacement per cycle and 190 cycles min.
Max. Flow (HIGH PRESSURE PUMP) 0.5 I/min with app.2.51ccdisplacement per cycle and 199 cycles per min.
Tank capacity app. 14liter.
Safety release valve is adjusted to max 2000bar
